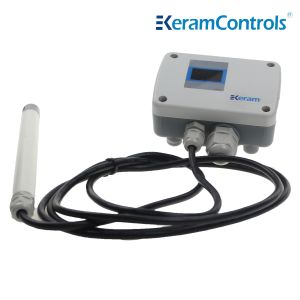

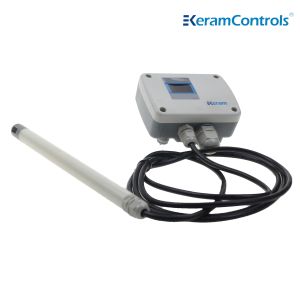

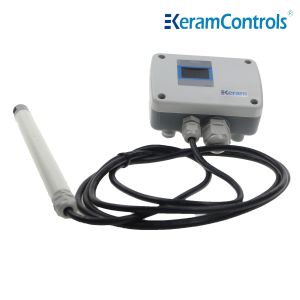

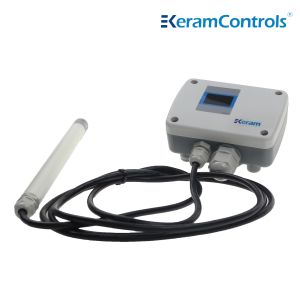

M16 air velocity transmitter for intelligent building control
Description
KAV120 series wind speed transmitter has a sensitive response to very low wind speeds, close to accurate
measurement of 0m/s air velocity. When the sensor is powered by
16VDC/VAC～24VDC/VAC, the output is 0-5V/0-10V/4-20mA/RS-485 signal,
and the output and the wind speed have a fixed linear relationship,
and the repeatability and consistency of the sensor output are very
good high. Using the integral hot film anemometer, the
anti-vibration capability is much higher than that of the
traditional hot wire anemometer. With a variety of installation
methods, the probe can be easily fixed in the measured airflow
position.
Specification
| Model | KAV120 |
| Power supply | 16-24VAC or VDC |
| output | 4-20mA/ 0-5V/ 0-10V/ RS-485 |
| Operating temperature | -5…+70℃ |
| Storage temperature | -20…+70℃ |
| Permissible humidity | 0…90 %RH |
| Measuring range | 1~30m/s |
| Accuracy | 0.2%FS |
| Working frequency | 50Hz |
| Maximum air velocity | 30m/s |
| Electromagnetic compatibility | EN61326-1 standard (industrial environment) |
| Housing material | ABS |
| Protection | IP65/ NEMA4 |
| Cable gland | M16*1.5 |
Dimensions
Ordering Guide
Model-Output-Display-Range-Probe
| Model | Output | Display | Range | Probe | | KAV120 | 4-20mA(3 wire) | (F) | YES | (D) | 0…1 m/s | (1) | RVVR0.5mm2 | 70 | | 0-10V(3 wire) | (G) | No | (-) | 0…2m/s | (2) | RVVR1mm2 | 200 | | Rs-485 | (H) | | | 0…5 m/s | (3) | RVVR1.5mm2 | 300 | | 0-5V(3 wire) | (J) | | | 0…10 m/s | (4) | | | | | | | 0…15 m/s | (5) | | | | | | | 0…20 m/s | (6) | | | | | | | 0…30m/s | (7) | | |
|
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order,
generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
